Hose Clamps
Engineered For
Strength & Reliability

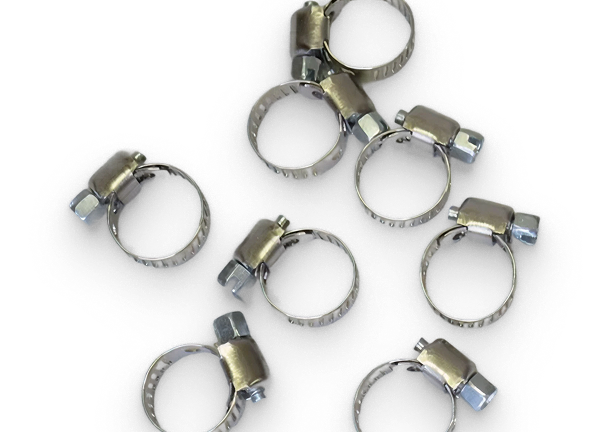

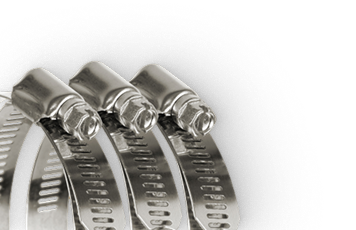

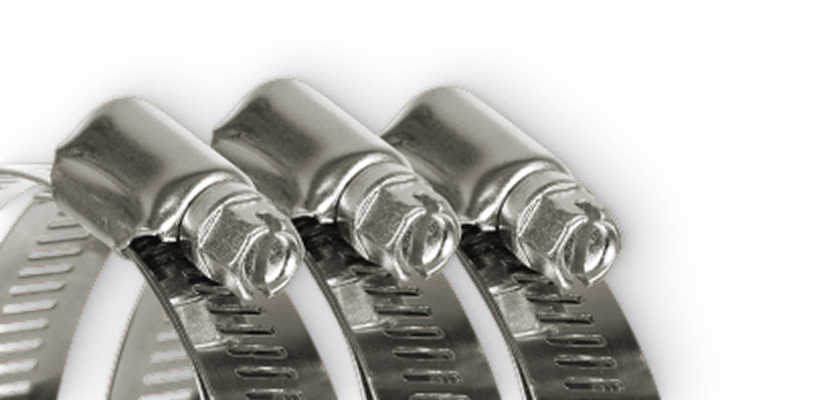

Premium Guard automotive and worm-drive hose clamps feature a
stainless-steel band and housing for strength and corrosion resistance,
delivering reliable, high-torque performance. The hex head design allows
quick, easy fastening with the FLX Flexible Driver. Each box contains 10
clamps, with 10 boxes per case.
Premium Guard's

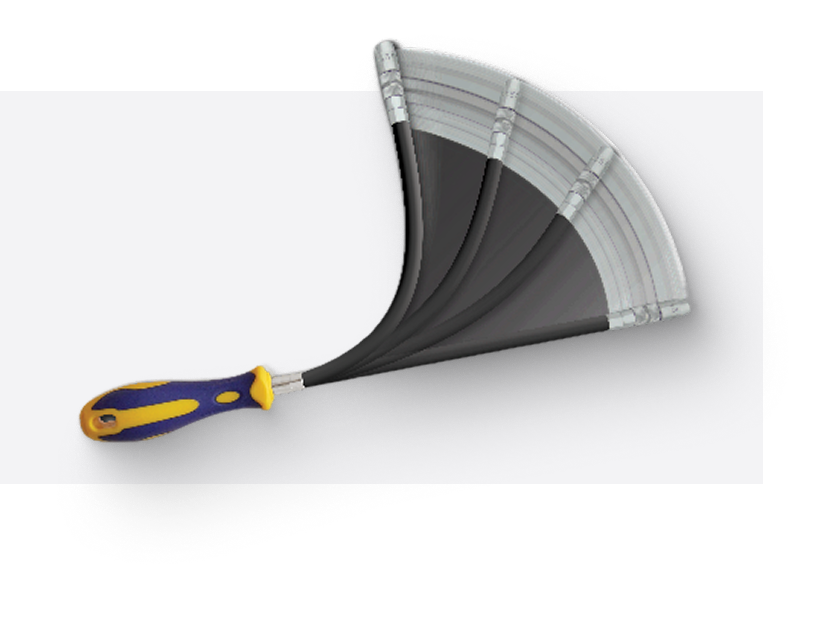

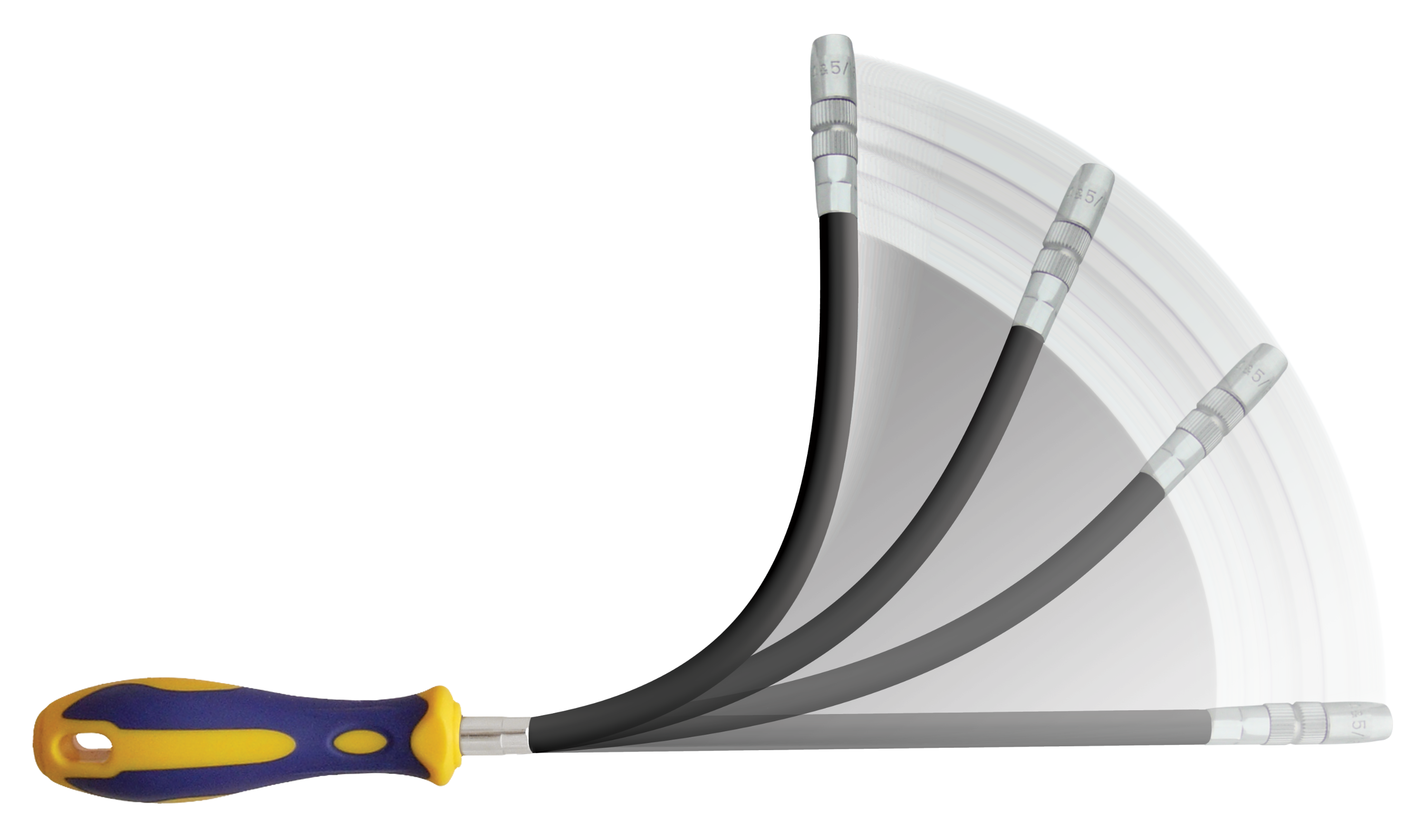

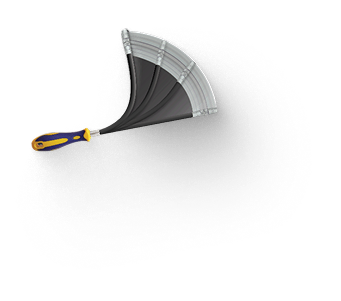

FLX Flexible Driver
The FLX Flexible Driver is ideal for both automotive and industrial applications.
It provides superior flexibility for working in tight, hard-to-reach areas and
features a reversible socket that fits both mini and standard hose clamp screw
heads (¼″ / 6.35 mm and 5⁄16″ / 7.94 mm). The FLX Driver delivers flexible, 90°
access for maximum convenience and control.
Specifications For
Hose clamps
Specifications For
Hose clamps
The FLX Flexible Driver is ideal for use in both automotive and industrial applications . It provides superior flexibility when working in tight , hard-to-reach places and features a reversible socket to fit mini and standard hose clamp screw head sizes : 1/4″ ( 6.35mm ) & 5/16″ ( 7.94mm ) . The FLX driver offers
flexible , 90 ° access .
Hose
Clamps
Engineered For
Strength & Reliability
Premium Guard automotive and worm-drive hose clamps feature a stainless-steel band and housing for strength and corrosion resistance, delivering reliable, high-torque performance. The hex head design allows quick, easy fastening with the FLX Flexible Driver. Each box contains 10 clamps, with 10 boxes per case.
Premium Guard
FLX Flexible Driver
The FLX Flexible Driver is ideal for both automotive and industrial applications. It provides superior flexibility for working in tight, hard-to-reach areas and features a reversible socket that fits both mini and standard hose clamp screw heads (¼″ / 6.35 mm and 5⁄16″ / 7.94 mm). The FLX Driver delivers flexible, 90° access for maximum convenience and control.
Specifications For
Hose Clamps
| PG # | SAE Sizes | Min. Diam. (in.) | Max. Diam. (in.) | Band & Screw |
|---|---|---|---|---|
| MC4 | Mini 4 | 5/16 | 5/8 | 8mm Band Hex Head |
| MC6 | Mini 6 | 5/16 | 7/8 | 8mm Band Hex Head |
| HC8 | 8 | 7/16 | 1 | 1/2" Band Hex Head |
| HC10 | 10 | 1/2 | 11/16 | 1/2" Band Hex Head |
| HC12 | 12 | 1/2 | 11/4 | 1/2" Band Hex Head |
| HC16 | 16 | 11/16 | 11/2 | 1/2" Band Hex Head |
| HC20 | 20 | 3/4 | 13/4 | 1/2" Band Hex Head |
| HC24 | 24 | 1 | 2 | 1/2" Band Hex Head |
| HC28 | 28 | 11/4 | 21/4 | 1/2" Band Hex Head |
| HC32 | 32 | 11/2 | 21/2 | 1/2" Band Hex Head |
| PG # | SAE SIZES |
MIN. DIAM. (IN.) |
MAX. DIAM. (IN.) |
BAND & SCREW |
|---|---|---|---|---|
| MC4 | Mini 4 | 5/16 | 5/8 | 8mm Band Hex Head |
| MC5 | Mini 5 | 5/16 | 7/8 | 8mm Band Hex Head |
| HC8 | 8 | 7/16 | 1 | 1/2" Band Hex Head |
| HC10 | 10 | 1/2 | 11/16 | 1/2" Band Hex Head |
| HC12 | 12 | 1/2 | 1 1/4 | 1/2" Band Hex Head |
| HC16 | 16 | 11/16 | 11/2 | 1/2" Band Hex Head |
| HC20 | 20 | 3/4 | 13/4 | 1/2" Band Hex Head |
| HC24 | 24 | 1 | 2 | 1/2" Band Hex Head |
| HC28 | 28 | 11/4 | 21/4 | 1/2" Band Hex Head |
| HC32 | 32 | 11/2 | 21/2 | 1/2" Band Hex Head |
Specifications For
Display and tools

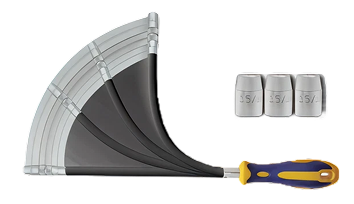

| DISPLAYS & TOOLS | DESCRIPTION | IMAGE |
|---|---|---|

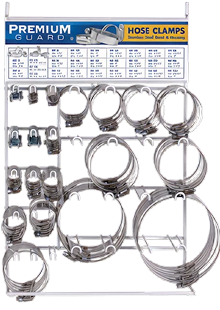

| 9911 | Steel Display Rack for Counter or Wall |
|
| 9989 | 90° Flexible Hose Clamp Driver with Reversible Socket | |
| 9885 | FLX Socket Replacement – 3 pieces per pack |
